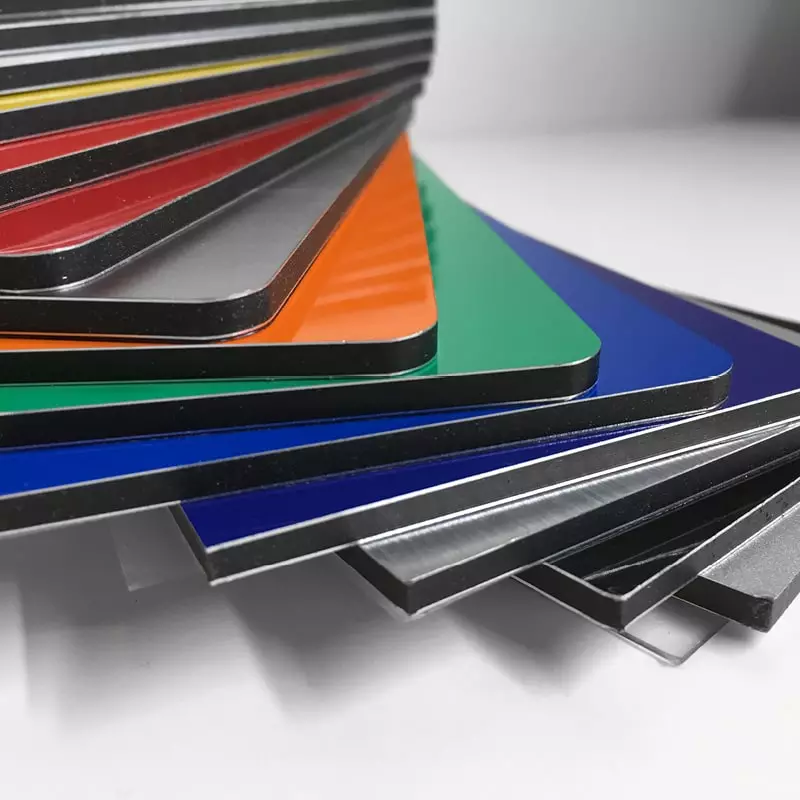

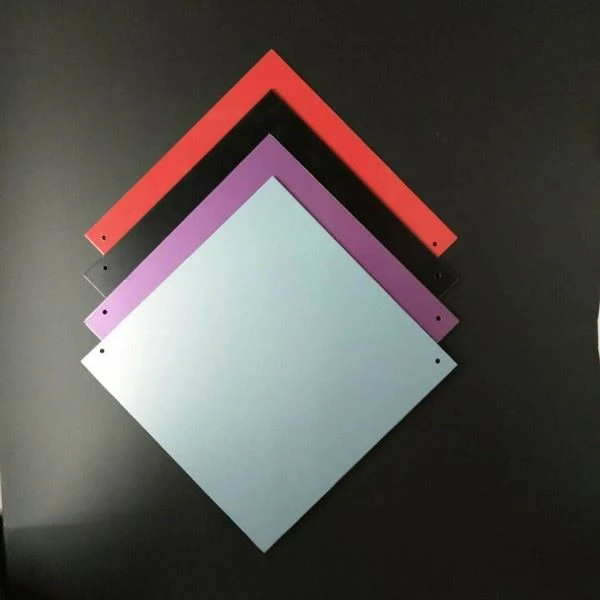

PVDF Aluminium Composite Panel/ACP/ACM Panel
PVDF aluminum composite panel is exclusively made for exterior wall cladding, its excellent property comes from the front coating and its outstanding durability, PVDF (polyvinylidene fluoride carbon) kynar 500 coating is achieved through the continuing roller coating system which is based on the most prestigious technology and the multiple layers are individually stoved at 220-260℃ the two cover sheets sandwich the same mineral core of polyethylene which is hardly inflammable.: chemical salt and alkali resistance for 20 years.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
PVDF Aluminium Composite Panel/ACP/ACM Panel
Introduction:
Aluminium Composite Panel (ACP) is made up of three layers, with two layers of aluminum skin on the top and bottom, and one layer of anti-toxic polyethylene material in the middle. Also, both of skin surfaces need to be coil-coated with special paint material like PVDF or PE resin under a specific temperature condition.
Strictly according to the international quality system ISO9001 and ISO14001 produce superior quality aluminum composite panels. Our aluminum composite panels passed GB/T1778-1999 ,SGS tests and gained CE certificate. Because of its excellent weather proof and other features, the panel becomes a very popular Cladding materials in the world.
Specification:
Panel Thickness(mm) | 1.5mm-8mm |
Aluminium Skin Thickness(mm) | 0.05mm-0.5mm |
Width(mm) | 1000mm-2000mm |
Length(mm) | 1000mm-10000mm |
Aluminium Alloy | AA1100, AA3003 |
Surface Coating | PE/PVDF/NANO/Mirror/Brush/Wooden Marble |
Packing | Wooden Package or bulk loading |
| Delivery | 15 to 20 days after receiving deposit and color confirmed |
| Payment Term | L/C T/T (30%deposite+70%) |
Feature :
-Light weight, high strength, extreme rigidity, superior impact resistance,
-excellent surface flatness and smoothness ,
-heat insulation, sound insulation, fire-resistance,
-acid-resistance, alkali-resistance, good weatherproofing and non-resonance
-various uniform colors ,can be easily processed and fabricated, quickly installed,
-elegant and magnificent, good flexibility fits various designs,
-easily maintenance, simply cleaning
Applications:
1. Constructional exterior curtain walls;
2.Decorative renovation for storey-added old buildings;
3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
4.Advertisement board, display platforms and signboards;
5. Wallboard and ceilings for tunnels;
6. Raw materials in industrial purpose;
7. Materials used for vehicle and boat.
Colors:
Standard color of RAL and any other colors can be customized at clients' request.
Certifications
Our ISO 9001:2008 certified company houses 67 QC staff with 15 years experience that are allocated to at least two QC staff per production line. To maintain a strict QC system, we not only utilize precision testing instruments but we also continuously train our QA personnel regarding the latest testing principles.
FAQ
1. How to choose the panel thickness for different usages?
Exterior usage: 4mm panel with 0.30mm,0.40mm or 0.50mm aluminum skin, better in PVDF coating.
Interior usage: 3mm panel with 0.10mm,0.15mm or 0.21mm aluminum skin, PE coating is ok.
2. How to check whether this product is in good quality?
A. First is to see whether the surface is smooth enough, no ripples, bubbles and scratches.
B. Second is to check whether the panel thickness and aluminum skin thickness is thick enough.
C. To check the core material, whether it's easy broken.
D. To test the peel strength between aluminum skin and the core .
E. See whether company is normal manufacturer, which have ISO, CE, SGS certificate.
....
3. How to confirm the color for what you want?
You can contact me for our color card.
You can also choose a color from the RAL/Panton color card.
4. More questions, please contact me....
Welcome to our factory at your convenience anytime!
