Aluminium Cladding Panel Aluminum Plastic Composite Panel ACP /ACM Sheets

Aluminium Cladding Panel Aluminum Plastic Composite Panel ACP /ACM Sheets

Aluminum composite panel, also known as aluminum-plastic composite panel or ACP for short, is a popular building material. It is a type of sandwich panel made from two aluminum sheets which are bonded to a non-aluminum core, usually made of thermoplastic polyethylene material. Aluminum composite panel is highly durable and corrosion-resistant, making it ideal for both indoor and outdoor use. It is often used in the construction industry for cladding, roofing, and ceilings, as well as in signage and advertising. One of the key advantages of aluminum composite panel is its versatility. It comes in a wide range of colors, finishes, and sizes, making it easy to match any design theme. Additionally, it is lightweight, easy to install, and requires minimal maintenance. In terms of safety, aluminum composite panel is fire-resistant and does not release toxic fumes when exposed to high temperatures. It is also resistant to impact, ensuring that it can withstand harsh weather conditions and external forces. Overall, aluminum composite panel is a highly versatile and durable building material that has become a popular choice in the construction industry. Its versatility, low maintenance requirements, and easy installation make it an attractive option for architects and builders alike.

Send Inquiry Chat Now

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Aluminium Cladding Panel Aluminum Plastic Composite Panel ACP /ACM Sheets

Product information
Panel Thickness	1.5mm-8mm
Aluminum Thickness(mm)	0.08mm-0.5mm
Width(mm)	1000mm,1220mm,1250mm,1500mm,2000mm(max)
Length(mm)	1000mm-5800mm
weight	5.5kg/sqm based on 4mm Thickness
Surface Coating	PE,PVDF,PET FILM,NANO,Mirror,Brush,Wooden,Marble
size	12202440mm,12502500mm,12202800mm,12503200mm Or as clients requirement
standard	According to GB/T 17748-1999 standard
More Services	OEM,free Sample,Color Matching

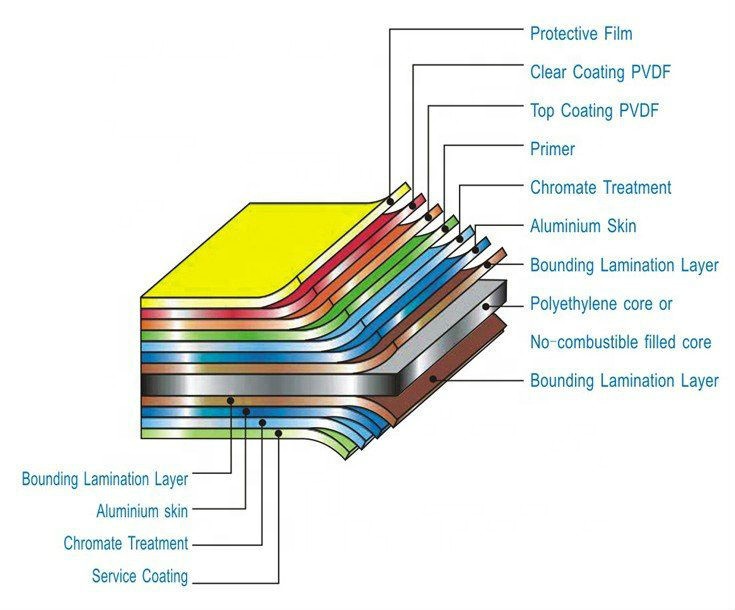

photobank (19)

Features：

Aluminum Composite Panel Series
PVDF Series	The surface of PVDF aluminum composite panel is Polyvinylidene Fluoride (pvdf, 70%contents) with good weather resistance, impact resistance, UV resistance, sound and heat resistance, colorful, smooth and beautiful. Its life is about 20 years. It is mainly used for exterior decoration.
PE Series	PE ACP is a kind of new green composite material which compounded of two layers of aluminum sheets and nontoxic low-density polyethyene (LDPE) by macromolecule adhesive film of American DuPont Company through thermo compression, The coating of the aluminum sheet is polyester coating with UV resistance, Its life is about 15 years. It is mainly used for interior decoration and advertisement board.
Mirror Finish Series	The surface of the mirror-finished ACP is an aluminium sheet that looks like a mirror. The back side is a corrosion resistant aluminium sheet. Mirror-finished aluminium panels have a mirror effect and are lighter in weight, less prone to breakage, lower in cost, stronger, bendable and easier to work with than mirror-finished glass. Due to these characteristics, mirrored aluminium sheets are increasingly used for interior decoration, especially in ceilings, cabinet panels, household appliances and furniture.
Nanometer ACP Series	The coating of surface of nanometer ACP is PVDF coating, and then adds a self-clean layer on the surface of PVDF coating. The self-clean layer can prevent the pollutant such as ash layer and decompose the pollutant in the air to reach self-clean effect. Its features of stain resistance, self-clean, acid resistance, weather resistance of nano is superior to the traditional PVDF ACP.
Fire-resistant Series	Fire-resistance ACP is a kind of green fire-resistant composite material which is compounded of two layers of aluminum sheet and special low-density polythylene (LDPE) with fire-resistance. The coating of its surface is PE or PVDF coating. The core material is compounded by fire-resistant MGOH, NAOH and PE Polyster, so it has the feature of good fire-resistance which can reach B1 class.
Drawing Finish Series	Drawing finish ACP is compounded of drawing aluminum sheet, the anti-corrosion aluminum sheet, and nontoxic low-density polyethylene (LDPE). Thanks to the drawing treatment, its appearance is very beautiful. It is widely used for interior decoration, especially in ceiling, Cabinet panel, household appliance, furniture.

Application

Aluminium composite panels are a versatile and easy to install quality building material with the following main application aspects：

1. Building facades: ACP is a popular material for external cladding of buildings due to its lightweight, durability, and aesthetic appeal.Aluminium composite panels are also often used to renovate the external walls of old buildings because of their colour diversity and variety.

2. Signage: ACP is a suitable material for the production of large, long-lasting signs. It is also easy to cut and shape, making it ideal for customized signage.

3. Interior decoration: Aluminum-plastic panel is an ideal material for interior decoration, including ceilings, partitions, and wall cladding, owing to its ease of installation, low maintenance, and high durability.

4. Kitchen cabinets: ACP is a preferred material used in the construction of modern kitchen cabinets due to its corrosion resistance, lightness, and easy cleaning.

5. Exhibition stands: ACP is used to build exhibition stands and kiosks due to its flexibility, easy installation, and low cost.

6. Transport and industrial applications: Aluminum composite panel is also used in the manufacturing of vehicles, trains, airplanes, and ships as well as in industrial machinery due to its strength, durability, and lightness.

The construction technology：

Aluminum composite panel, commonly known as ACP, is a popular building material, especially for architectural cladding and façades. It is a composite material made of aluminum and plastic, making it lightweight, durable, and weather-resistant. The installation of ACPs is crucial to ensure its longevity and aesthetic appeal. In this article, we will discuss at least three ways to install aluminum-plastic panels.

1. Mechanical Fixing

The mechanical fixing method involves attaching the ACPs to the substructure with screws or rivets. This method is suitable for low-rise buildings, and it depends on the thickness of the panels. The substructure should be sturdy enough to hold the weight of the panels, and the distance between the purlins or studs should be according to the manufacturer's guidelines. The panels should be fixed first at the top and bottom, and then the sides.

2. Structural Adhesive

The structural adhesive method involves bonding the ACPs to the substructure with adhesive. This method is suitable for high-rise buildings, where wind loads and thermal expansion are significant factors. The substructure should be clean, dry, and free from dust, oil or any other contaminants. The adhesive should be applied evenly and precisely on the panels, and then pressed onto the substructure with a roller or a press. The adhesive should be allowed to cure for a specified period, depending on the manufacturer's guidelines.

3. Hanging System

The hanging system method involves suspending the ACPs from the substructure with aluminum brackets or profiles. This method is suitable for buildings with irregular shapes or for curved surfaces. The substructure should have a grid of aluminum profiles, and the brackets should be fixed to the profiles. The panels should be hung from the brackets with aluminum rails, which are secured with screws or rivets. The panels should be leveled and aligned properly, and the joints should be sealed with silicone.

In conclusion, the installation of aluminum-plastic panels requires careful consideration of the building design, the substructure, and the climatic conditions. Each method has its advantages and disadvantages, and it all depends on the specific requirements of the project. It is recommended to consult with the manufacturer or a qualified installer before making any decisions.
