Signage Aluminum Composite Panel Printable Surface With Pe Coating
Net aluminum plate with high grade aluminum alloy as the main material,according to the engineering design field size, shape and structure formthrough fluorine carbon bending technology molding, to ensure that the plate carbe smooth without deformation after machining, a high-grade decorative metamaterials and the production of spacing ratio uniform mesh based on the surface fluorocarbon spray, do not need to be cut when in use, can be directly installed.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

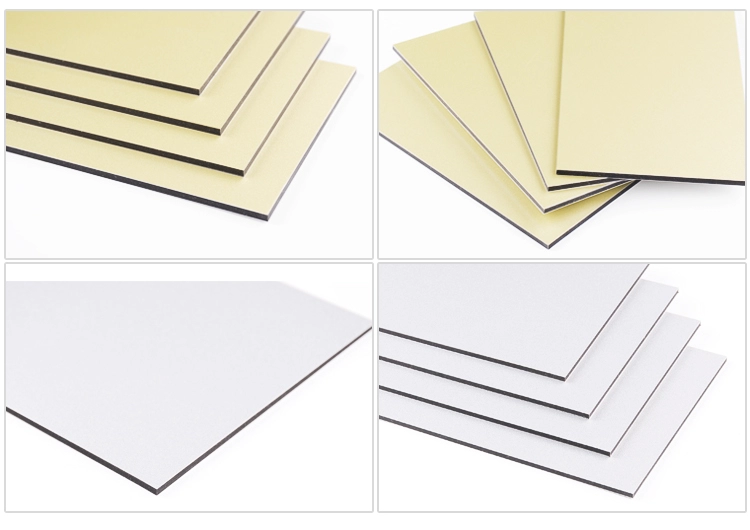

Exterior Aluminum Plastic Composite Panel
Product Description
1)Material:
A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer
B) Core: nontox low density polyethylene
C) Back: aluminium alloy sheet coated with polyester resin painting
D) Surface coating thickness: 32μ±1μ
E) Aluminium alloy: 3003 H24
F) Sheet thickness: 0.3mm,0.4mm,0.5mm
2)Dimensions
A) Thickness: 3mm,4mm,6mm,8mm,10mm
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max)
C) Length: 2440mm,3050mm,3200mm( max:6000mm)
D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness
E) Standard size:1220*2440mm
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm
G) Non-stanard size are available according to requirement
3)Standard:
A) West Europe standard ( Germany DIN Standard);
B) The EAST Europe standard ( Russian standard );
C) The commonweathlth standard (U.K BS Standard );
D) The North America ASTM standard;
4)Alumtimes® ACP compared with different products( Lightness / Rigidity ):
The composite structure of FAME® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes FAME® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity
5) Alumtimes® ACP compared with solid aluminium:
Required thickness and actual weights of panels with same rigidity
Alumtimes® ACP | Aluminium | ||||
Rigidity (E J) | Section modulus | Thickness | Weight | Thickness | Weight |
1250 kN cm2/m | 1.25 cm3/m | 3 mm | 4.5kg/m2 | 2.7 mm | 7.3kg/m2 |
2400 kN cm2/m | 1.75 cm3/m | 4 mm | 5.5kg/m2 | 3.3 mm | 8.9kg/m2 |
6) Alumtimes® ACP Physical Properties for Panel:
Panel density | 5.5kg/m2 |
Peel Strength | Average 7.0 N/mm |
Tensile Strength | 52.5 Mpa |
Flexural Strength | 100.0 Mpa |
Shear Strength | 28.1 Mpa |
What is the minimum order quantity?
500 square meters for aluminium composite panel
What is delivery time?
15-18 days after deposit,Except for public holidays.
How can you guarantee the quality?
We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC .
How long can I get a quote?
The quotation can be provided not longer than 24 hours on condition that we know all detailed requirements.
Can I get a sample?
Yes we offer free samples. Delivery cost is to be paid by clients.
Can you provide OEM service?
Yes,we can produce under your own brandname. Logo and design need to be provided so as to make customized brand name.
Can I buy installation accessories from you?
Yes, we provide wet wall and dry wall system installation accessories.If you want to know more about the installation of aluminium composite panel, pls contact with our professional sales team.
Why can I trust you and place order with you?
From 2003 to 2020 Alumtimes is with 17 years experience in this industry, we have served clients from more than 100 countries, Alumtimes is well-known for its quality and Alumtimes team win clients’ trust by honesty and down to earth business style.
